Other Hardware Projects
Submitted Hardware Projects
What follows are other related hardware projects that have been
sent to me.
Each appears with the permission of the creator of the project
I take no credit for the projects that appear on this page.
Any and all projects on this site are undertaken at your own risk

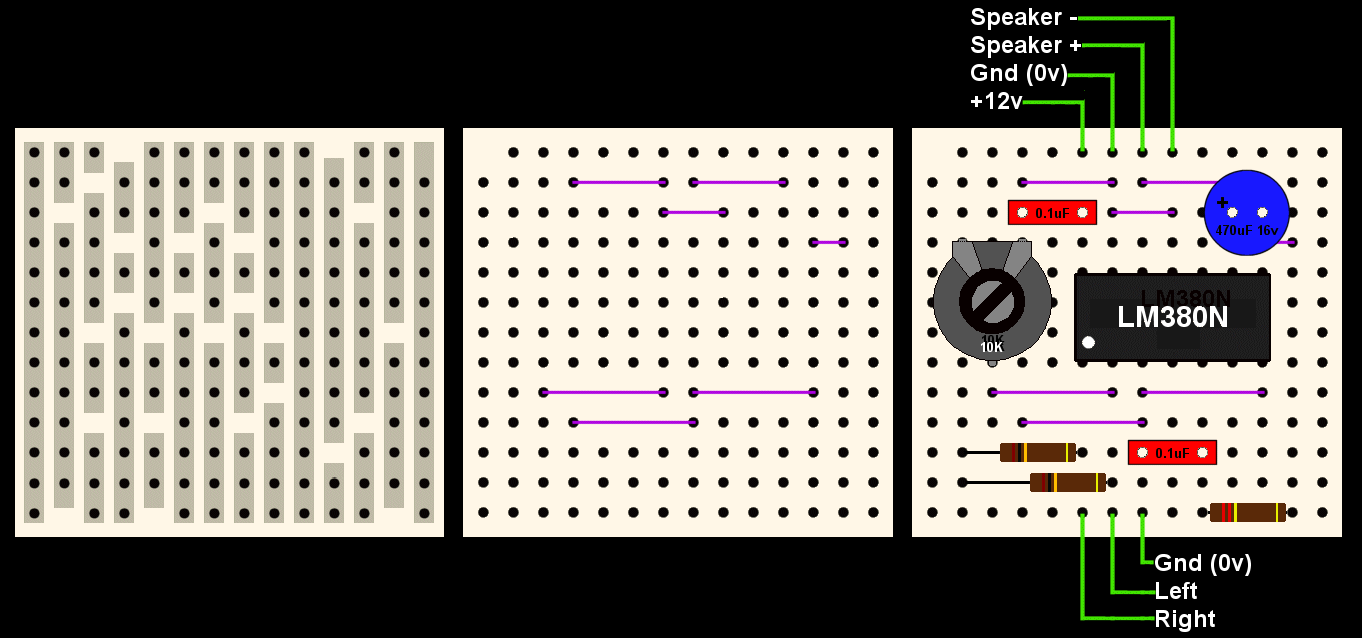

LM380N based Stereo Summing/Mono Amp
This is a nice variantion on the LM380N based amp used in most
of the projects on this site
It accepts either a stereo or mono input
Designed by D-Zine
(Click for a more detailed diagram)
Parts List:
1x LM380N 14-Pin DIL Audio Amp
2x MKS2 0.1uF 63vdc Capacitors
1x 470uF 16v Radial Electrolytic Capacitor
1x 10K Miniature Horizontal Carbon Trimmer
1x 2R7 1/4 Watt Resistor
2x 10K 1/4 Watt Resistors
Matrix Board (14 copper strips x 13 holes)
Tinned Copper Wire (Links)
26 Tracks to cut
7 link wires
Video Amplifier
One of the problems of connecting consoles or PCs to arcade monitor
is that their P2P output
is usually less than that of real arcade boards.
This can be corrected by adjusting the monitor and optionally
putting some electrolytics in the
video signal path to reduce the DC offset of the signal

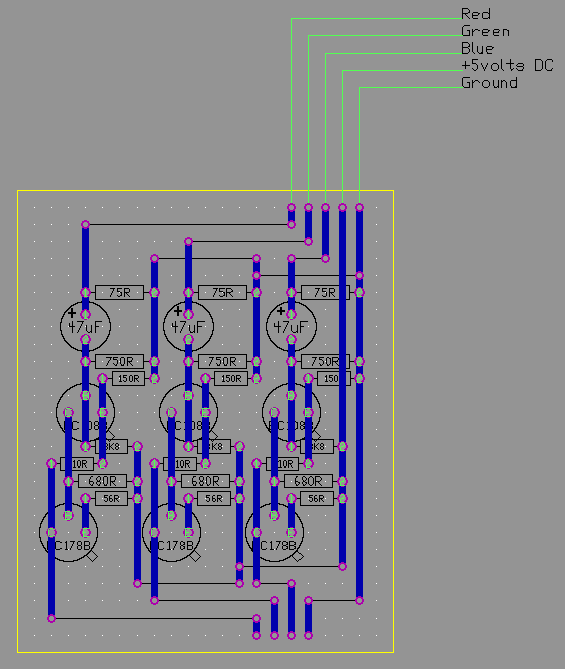

This circuit is a nice/cheap video amplifier, which brings the
console/PC's video output closer to that
of a real arcade board
Designed by D-Zine
(Click for a more detailed diagram)
Parts List:
Resistors
3x 56 Ohm
3x 75 Ohm
3x 130 Ohm
3x 510 Ohm
3x 680 Ohm
3x 750 Ohm
3x 3K8 Ohm
Transistors
3x BC108B
3x BC178B
Capacitors
3x 47uF
Complete PC2JAMMA Circuit
This is rather cool complete PC2JAMMA circuit, these files incude
everything - overlays
instructions etc. for manufacturing the PCB
Designed by ZangTumTum
PC2JAMMA Circuit Description (pdf)
PC2JAMMA Manufacturing Details (zip)
PC2JAMMA Bill of Materials (pdf)
PC2JAMMA pics(zip)
PC2JAMMA Assembly Details (zip)
